As the world's famous products have kept just DC-DC voltage regulator of linear type, this product is also dual channel linear regulator that wouldn't fundamentally generate switching noise and ripples contrary to switching-type regulator and has superior voltage stability, current supplying capability, and transient response against radical load variation. Therefore, it is enable to safely apply to PPM, PCM schemes as well as all system including 2.4GHz. Download: Extreme Regulator(GVR-7020) manual
There are input/output ports for four channels. Three servos for CCPM as well as throttle servo can supply the power optimized to servo specification(4.8V or 6.0V), and the voltage optimized to each servo even for system using 4.8V mixed with 6.0V servo.

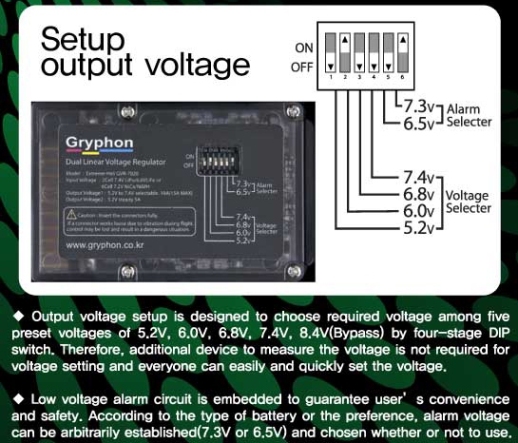

GVR-7020 is supported to use 7.4V HV servo. If output voltage is setup to 7.4V or 8.4V(Bypass), it is able to achieve more stable power supply and transient response than 7.4V battery direct connecting scheme to perform the buffer regulator function along with capacitor circuit.
This regulator, is actively applied with rapidly changing RC environment such as popularizing trend of Extreme 3D flying, becoming bigger of the body and high performance of the servo from the product design stage, has been developed to focus on the quality and stability of power and the improvement of transient response of entire power system instead of traditional method which uses simple current capacity as a measure for designing a regulator. In addition, the safety as well as user's convenience are secured to add the alarm function for low voltage of the receiver battery.
It has passed various electronics countermeasure test and long-term field test, and optimized to tune with extreme operating environment as the project product even through the test for extremely hot weather in a desert region. Therefore, it should be the masterpiece of regulator to find differentiated performance other than any products experienced before.
Contrary to existing products that two same regulators are packed in a case, it has manufactured that each electronic device can achieve the best performance with designing hybrid type to use each other output component for CCPM servo's circuits emphasizing the power and responsibility, RX and Gyro's circuits emphasizing the voltage stability and noise-free.

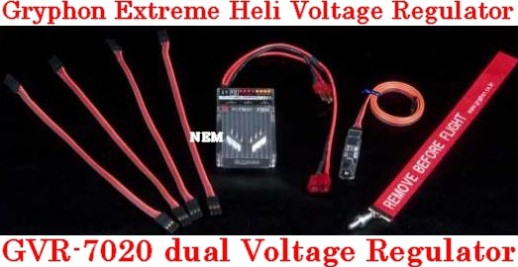

What you get:
1 x GVR-7020 Extreme Voltage regulator
4 x servo cables
1 x LED Board Voltage and Indicator
1 x Removable switch for activation
