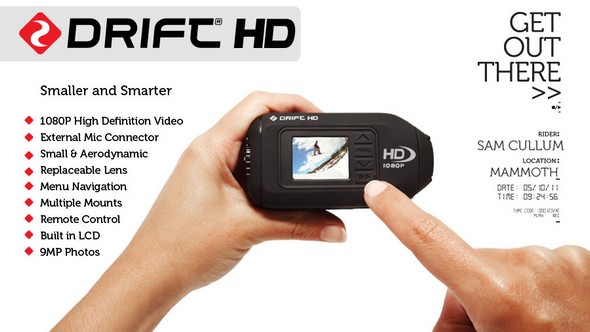

The new compact, durable, easy-to-use Drift HD camera elevates the point of view camera market to a higher level with the most feature-rich, multi-functional, professional helmet camera available to date:
Full HD for creating crystal clear footage
More compact housing, 4.1 inches and 4.23 oz., 25 percent smaller that its predecessor
Replaceable lens
Second rear cover to protect the camera when using an external mic or a USB charger
A playback LCD screen for lining up shots and the ability to play back the footage right away
Micro HDMI connector for HDTV playback
A remote control to enable you to film what you want to record, not the boring stuff in between
New goggle strap in addition to curved and flat adhesive mounts, paired with a universal clip for multiple mounting options
Standard 1/4″ 20 mm thread for use with most tripods
If that isn′t enough the camera also has the following :
A rotating lens so you can mount the camera at any angle and any position to get that shot you are looking for
It can take 9 MP photos. Put it in the photo burst mode and you can take pictures every few seconds for as long as your memory card and battery lasts
You can pair the remote control to your camera or any number of additional cameras.
A digital zoom function so you can get even closer to the action or your friend in front
A 2.5 microphone input for external microphones
Night mode so you can record in darker and duskier conditions
Waterproof case accessory offering
External power pack accessory offering (20 hrs. record time)
Maximum Video Resolution: 1080p High Definition
microSD Memory Capacity: up to 32GB
25 / 30 / 50 / 60fps in 720p or 25 / 30fps in 1080p
Still Photo: 9 megapixel with Photoburst Mode
Digital Zoom: Digital x4 (in 1080p, 720p/30/60fps & WVGA mode)
Lens Angle: 170° Fully Rotatable Wide Angle Lens
LCD Screen: 1.5″ Colour TFT
Water Resistant
Remote Control: Wireless RF (5m range) Hands Free Video and Photo
Mounts: Multiple Mounting Design, Standard 1/4″ 20 mm thread
Menus: User Friendly Control Panel in 15 Languages
HD Action Camera
Remote Control
Spare rear cover
Goggle Mount
Curved and Flat adhesive mounts
Universal Clip
Velcro Strap
Lithium Battery
USB Cable
Quick Guide to get started
Sensor type: CMOS
Water Resistant
Video resolution: 1080p, 720p & WVGA
Video format: H.264
File format: .MOV
25 / 30 / 50 / 60fps in 720p or 25 / 30fps in 1080p
Video format: 16:9
Lens Rotation: 300°
Recording Angles: 170° in 1080p, 170° in 720p & WVGA
White balance: Auto
Exposure: Auto / Manual (advanced users)
Zoom: Digital x4 (in 720p/30/60fps & WVGA mode)
Remote range: 5m range
Built-in Microphone
Inputs: Optional External Microphone
AV Output: HDTV out (cable included)
Battery: 1110mAh rechargeable lithium-ion/ Optional 1700 mAh Li-ion rechargeable.
Power-Save option saves batteries by powering down the screen
microSD memory capacity: Supports memory cards up to 32 GB
Photo resolution: 9 Megapixel
LCD screen: 1.5″ colour TFT
Lens focal range: 0.5m to infinity
Dimensions: Camera – 4.1 inches or 104.14 mm (L) x 50 (D) x 33 (W) mm / Remote Control 52 (L) x 40 (W) x 13 (D) mm
Power: Camera – DC 3.7V / Remote control: DC 3C, 1x CR2032 battery (included)
RF: Receiver (Camera): 433.92MHz ISM band / Transmitter (Remote): 433.92MHz ISM band
Weight: Camera – 119.91g / Remote control – 19g
Operating Systems: Compatible with Windows 7, XP & Vista; Mac OS 10.2
What type of SD Card does the camera support? The Drift HD170 supports SD cards from all leading brands, but we recommend class 4 cards for video. The unit is also compatible with SDHC cards
What is the biggest SD Card I can use? The Drift HD170 supports SD cards with a capacity of up to 32GB.
How does the remote control work? The remote control uses radio frequency (RF) to communicate directly with the camera unit.The remote is RF based, rather than infrared (IR), as used in other helmet cameras. As a result, you do not need to point the remote at the camera. As long as the remote is in range of the camera, it will pick up the remote control signal.
How do I charge my HD170 Lithium Battery? The HD170 lithium battery is designed to be charged inside the camera. When a power source (wall plug (not supplied) or usb cable) are connected to the back of the camera, the camera will immediately power up. While the camera is powered up the battery is not charging. Please power down the unit by holding the select (on/off) button. The screen should the power down, and LED on the select button should turn to blue. The camera is now charging.
How far will the remote control work? The wireless remote control has a range of 5m.
What are the dimensions of the video camera? The dimensions of the camera are 133 (L) x 50 (D) x 33 (W) mm and those of the remote control are 52 (L) x 40 (W) x 13 (D) mm.
The videos and photos give me a slight fisheye effect. Is this right? Yes it is. We specifically selected a 170° lens to provide users with the really quirky wide angle that was prominent in the early days of helmet cameras, particularly in skateboarding. The effect is less pronounced on objects in the distance and more pronounced on objects close to the camera lens. If you prefer a tighter angle, you can use the camera˘s zoom function, or shoot in 1080p. But we think you˘ll grow to love this classic hallmark of action sports video.
How waterproof is the camera? Both the Drift X170 and HD170 are designed to be splash-proof, dust-proof, weatherproof, and dunk-proof but not designed to be underwater for sustained periods of time. For most users this level of waterproof-ness is more than adequate. For those users who would like to use the camera in water sports or for scuba/snorkeling an aftermarket waterproof pouch available that may be suitable for the Drift range.
Why is my 1080p footage jerky when I play it back on my computer? Raw HD footage requires a powerful computer with a good graphics card to playback smoothly. If you are experience jerky playback, we would advise testing the footage on a HD TV via the component cable, if footage is smooth it is likely your computer does not have the required graphics Ram. If smooth playback is essential in this situation, please try recording in 720p. The minimum amount of dedicated graphics ram for 1080p playback is 256MB, however 512MB is preferred.
Where can I get the full manual for the HD170? At Drift Innovation, we try to keep our impact on the environment down to minimum. As a result our cameras ship with only a short printed quick guide to save paper. The full user manual is available to download from here.
