Upgrade 3 with FY602:
This Pack Contains a set of
2 x FY602 [433MHz] Data Radio hardware
FY3ZT Remote Adapter Board and Ground Control Software.
This upgrade package is specifically for those who are already flying the FY21AP+FYGPS.
Since the FY-OSD is also not offered, we assume you already have one or you have an existing OSD. With the FY-OSD, your battery voltage and mAh consumed will not be displayed by the GCS screen.
Package content:
• 7 x RC receiver connecting wires & plugs for FY3ZT Remote Adapter
• 1 x FY-3ZT Autopilot Remote Adapter
• 1 x USB Cable for computer;
• 2 x FY602 data link 433MHz, 500 mWatt, 10.000 km (long range);
• All the required wiring to complete the set-up.
• Latest FY-GCS Software downloaded
System Requirement (you¢ll need these get the system going):
• Two RC Receivers to operate this system:
- One on board your aircraft (minimum 6 channels)
- One for ground station (minimum 7 channels)
Ground Station Set-Up:
Ground Station Equipment
(F3ZT Adaptor, FY602 data Radio x1 and USB Adaptor)
|
| How to connect with your own Equipment |
 |
This Ground Control Station (GCS) hardware upgrade is geared towards existing owners of FY21AP+FYGPS.
All included hardware will upgrade your FY21AP+FYGPS for bi-directional digital communication between your aircraft and GCS computer.
Since the FY-OSD is not included, we assume you will be using your existing FY-OSD unit or other 3rd party OSDs. Without the FY-OSD, your battery voltage and mAH will not be shown on the GCS computer display.
ON BOARD SET-UP (All are option except the FY606 Data Radio (normal range 4KM):
On Board Equipment "for rc Model Aircraft"
|
 |
| FY-21AP Version 2.0, (option) FY-GPS Version 2.0 (option), FY-602 Data Radio (long range 10KM), and all cable for set-up |
The FY602 [433Mhz] Data Radio system enables a bi-directional digital communication system between the FY21AP autopilot on board your plane and your ground control station (GCS) computer.
The major attribute to this Data Modem system includes:
• Display telemetry via FY-GCS on your computer screen (except battery voltage and mAh consumed as the FY-OSD is not included in this package;
• Download all flight parameters into your computer for instant playback;
• Instant play back of your flight route on Google Earth (GE) Map;
• Activation of auto circling by the click of your mouse anywhere on the displayed GE Map;
• Automated Return to Base in case of Data Link failure;

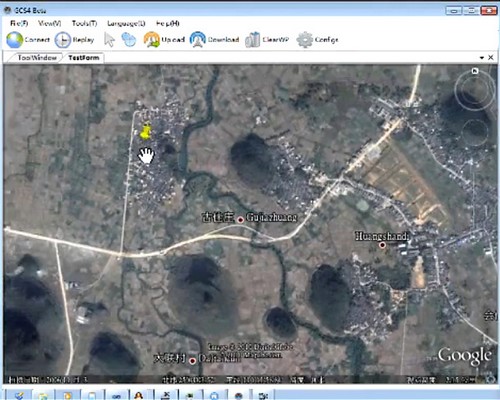

| Ground Sation Control (GCS) display data on your computer |
 |

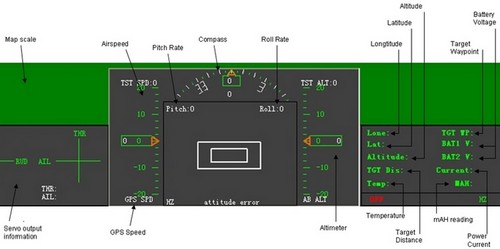

| GCS Display Fata on your computer |
 |
The FY21AP GCS Edition is a great start to a whole new flying experience.
To Fully understand how the system works, you'll need to read through the following manuals:
Download Manual: FY21AP.PDF
Download Manual: FY21AP-GCS Upgrade.PDF
For Latest Version of GCS Software, contact NEM
 |
